Model:
ADMT-7B
-
Features:
The ADMT-7B replaces bulky traditional systems with a compact, lightweight design. With intelligent analysis software, it offers easy operation and efficient field performance.
High Accuracy using the most advanced circuit design, single chip microcomputer control, automatic noise reduction,digital filtering to highly improve survey accuracy and stability.
Easy to operate humanized man-machine interface, built-in all kinds of formulas to read VP, IP, RO, M, TH... parameters.
More Parameters could measure VP, IP, SP, RO, M, TH....
Complete Equipment four poles to detect depth, intermediate gradient, combined profile, five poles, three poles etc....about 30 kinds.

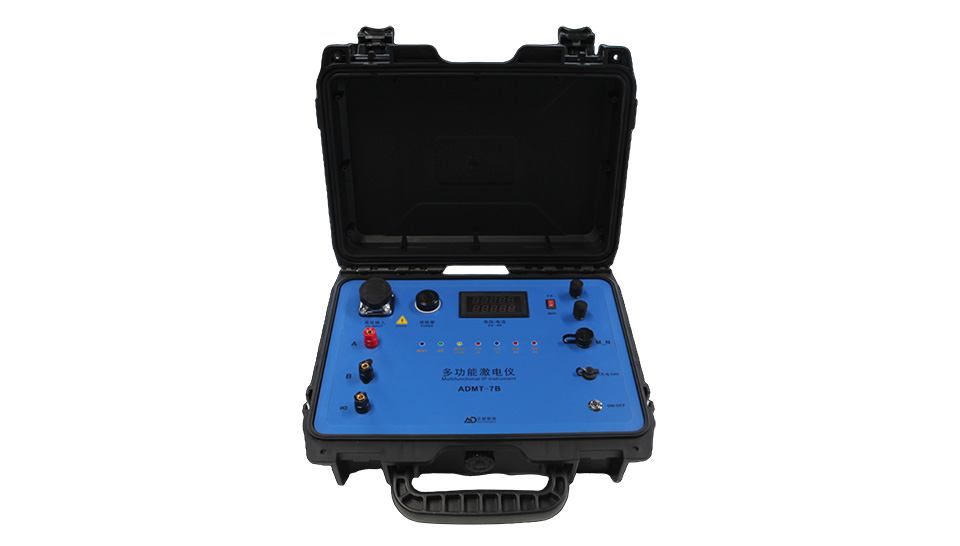

ADMT-7B Multi-Function Electrical Resistivity & IP Survey System
R&D Since 1973
Free upgrading at the original price after purchasing within six months
The ADMT-7B is designed to replace traditional bulky and heavy resistivity equipment with a compact and lightweight solution. Equipped with intelligent analysis software, it delivers easy operation and efficient field performance.
Light &
Portable
Accurate
& Stable
Fully
Equipped
Simple
Operation
MEET YOUR VARIOUS NEEDS
Iron Mineral Exploration
Water Source Survey
Environmental Census
Engineering Investigation
Engineering Survey: Widely used in geotechnical investigations for railways, bridges, and urban projects, as well as archaeological surveys and underground pipeline detection, supporting both detailed and preliminary exploration.
Geological Survey: Applied in detecting mined-out areas, groundwater hazards, dam risks, fault zones, collapse columns, and slope instability, for both detailed and regional hydrogeological investigations.
FIVE ADVANTAGES
TO HELP YOU EXPLORE WORRY-FREE
Highly Intelligent, Easy to Operate

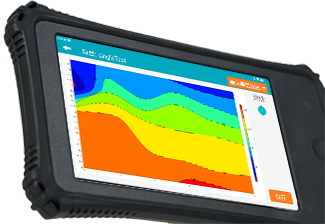

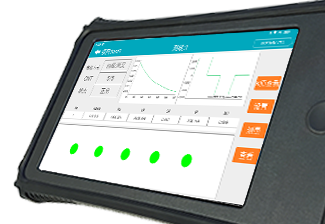

The system is equipped with a self-developed APP based on the Android operating system, providing high levels of intelligence and smooth interaction. It is compatible with most Android and HarmonyOS devices, including smartphones, tablets, and the company’s professional intelligent control hosts. From parameter settings and data collection to mapping and imaging, the entire process is visually guided, greatly reducing reliance on operator experience and providing efficient and convenient support.
Precise and Reliable, Immune to Interference
The system adopts the latest circuit design, combining automatic noise reduction with analog and digital filtering. It effectively extracts weak, real signals even in high-interference environments, ensuring that the data collected is stable, pure, and repeatable. This provides a solid foundation of trust for your decision-making.
Multiple Parameters, Strong Interpretability
The system simultaneously acquires multiple parameters such as VP, IP, SP, RO, M, TH, Z, and D. It also supports polarization decay curve results. The cross-validation of multiple parameters significantly reduces ambiguity in geological interpretation, making the judgment of subsurface anomalies more accurate.
Lightweight and Versatile Device Modes
The system features a lightweight design for easy field transport. It includes ten different mode types, such as four-electrode depth measurement, intermediate gradient, and joint profile. The system is adaptable to various tasks, from profile scanning to 3D area exploration, allowing a single device to handle a wide range of scenarios.
Flexible Expansion, Long-Term Investment
The system can be paired with a line-borrowing remote control system, easily upgrading to low-density, deep-exploration configurations. The device’s capabilities can grow alongside your business, effectively protecting the initial investment while meeting future, more demanding exploration challenges.

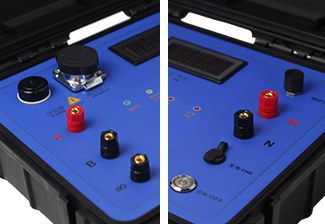

BEAUTIFUL IN SHAPE

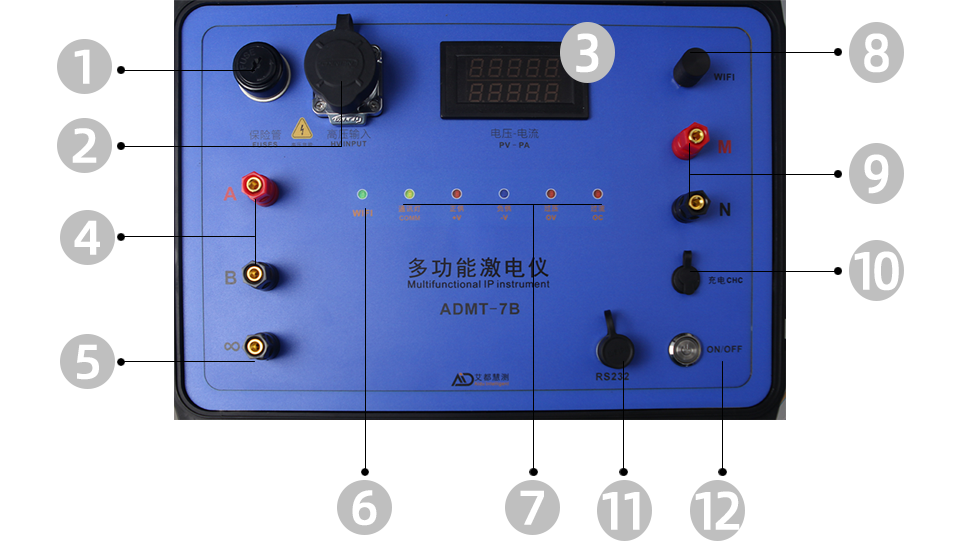

① Fuse ② HV Input ③ V/A Display ④ A/B Terminals ⑤ Remote Terminal ⑥ WiFi Indicator ⑦ Status Indicators ⑧ WiFi Antenna ⑨ M/N Terminals ⑩ Charging Port ⑪ Data Port ⑫ Power Switch
MAIN MODELS
AND TECHNICAL PARAMETERS
| Model | ADMT-7B |
|---|---|
| Voltage Resolution | 0.5 μV |
| SP Compensation Range | ±3000 mV |
| Voltage Measurement Range | 14000 mV |
| Input Impedance | ≥50 MΩ |
| Apparent Resistivity Accuracy | ±0.5% ±1 count |
| Apparent Chargeability Accuracy | ±1% ±1 count |
| 50 Hz Noise Suppression | ≥80 dB |
| Maximum Output Voltage | DC 1000 V |
| Maximum Output Current | 5 A |
| Output Waveform | Pulse width 0.5–60 s, duty cycle 1:1, bipolar |
| Output Waveform | Pulse width 1–60 s, duty cycle 1:1, bipolar |
| Current Channel | ±5000 mA ±2% ±1 count |
| Current Resolution | 0.5 μA |
| Power Supply | 12 V / 6800 mAh lithium battery |
| Operating Environment | −10°C to +50°C, 95% RH |
| Storage Temperature | −20°C to +60°C |
